Mechanical Design Engineer

Mohamad Rammal

Award-winning mechanical design engineer with experience across Biotech, Robotics, and Automotive — from CAD and FEA/CFD simulation to manufacturing and electro-mechanical integration.

View projects Get in touch

About

Mechanical design, end to end

Mechanical design engineer currently building point-of-care diagnostic technology at RapidX Bio. Graduated from UCL with a First in Mechanical Engineering. Work spans CAD, FEA/CFD simulation, manufacturing setup, and electro-mechanical integration.

Primary inventor on 2 biotech patents

Best undergrad FYP design project

Design of hydrogen fuel cell system

Robotics competitions since 2015

Selected work

Projects

Four projects spanning biotech consumables, sustainable transport, motorsport, and competitive robotics.

In the lab & on the field

Other Projects

Glimpses of the process behind the projects — CAD, prototyping, machining, and competition day.

Consumable and Accessories development with RapidX Bio

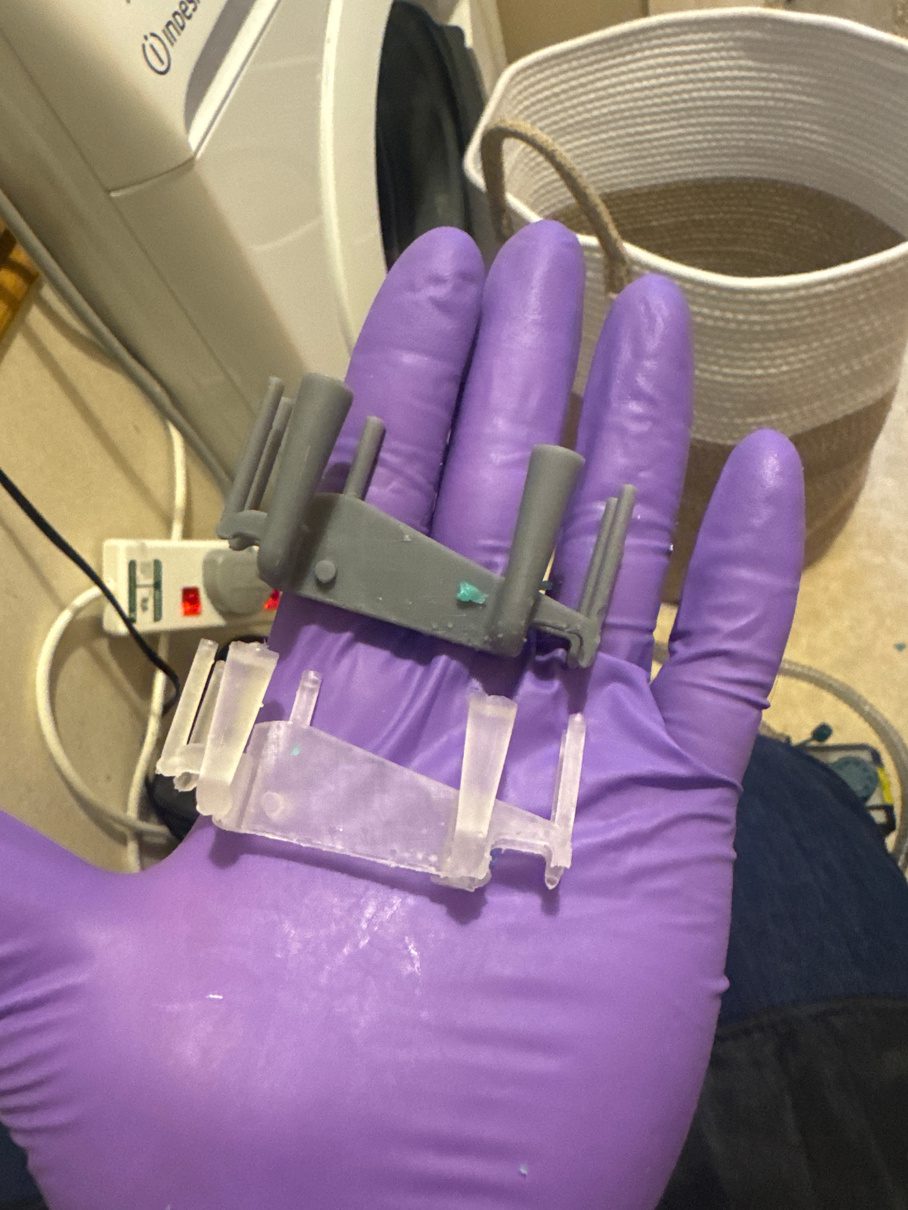

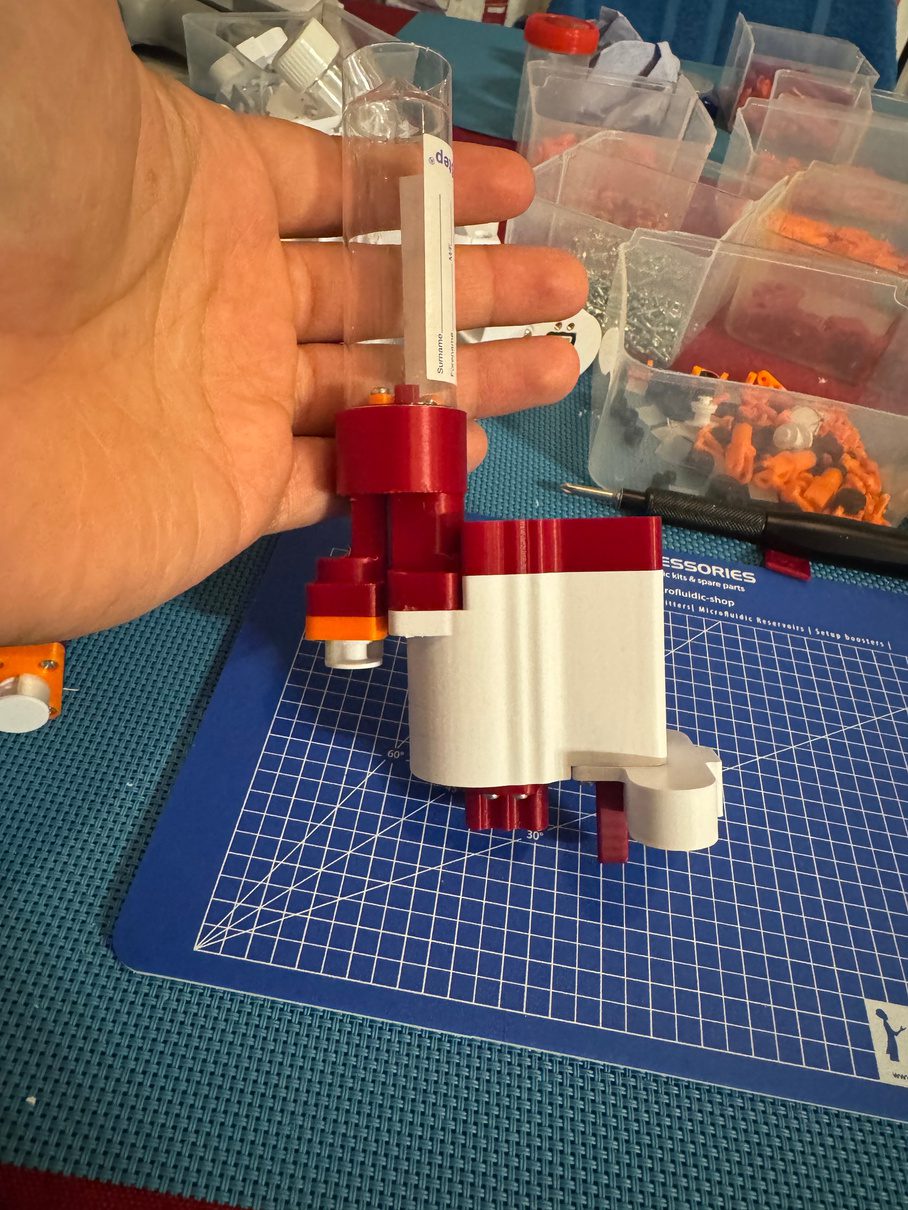

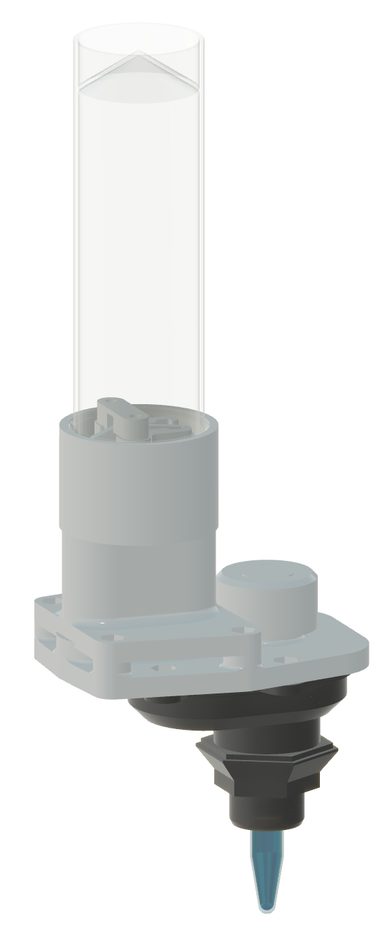

Cartridge prototype

FDM 3D printed prototype for client demos

Automated rig for loading and unloading test tubes into PCR device

Internal tool to speed up sample testing

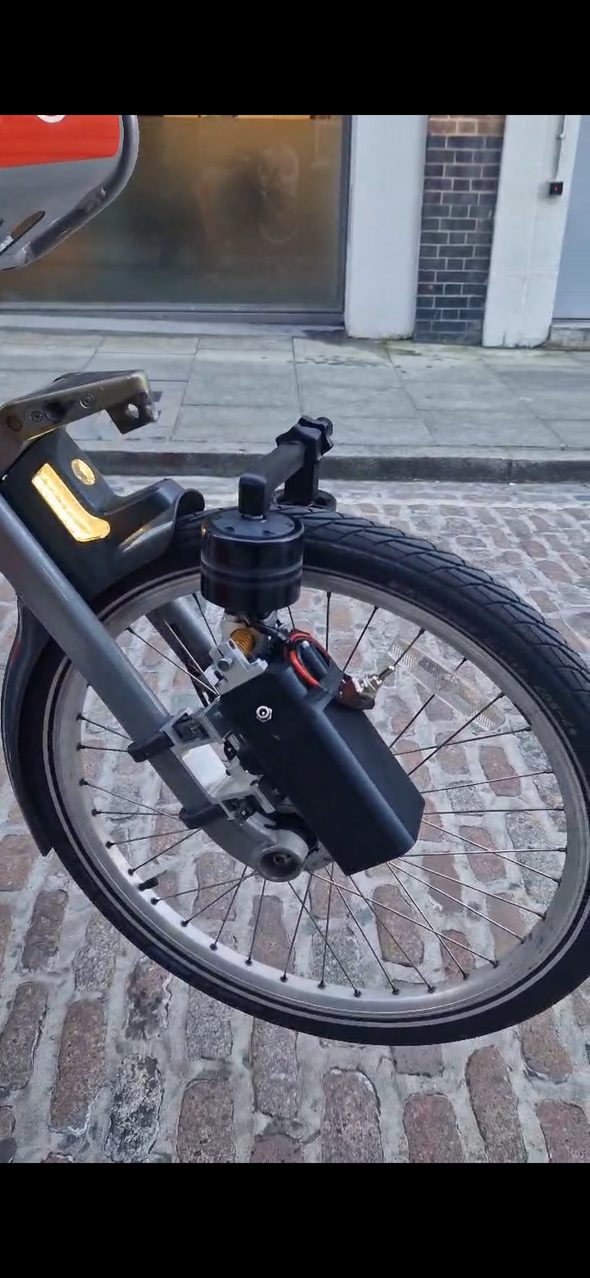

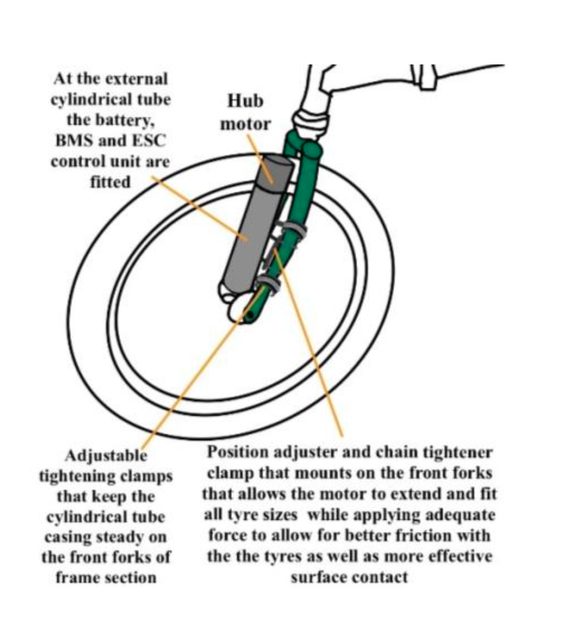

Universal e-bike conversion kit

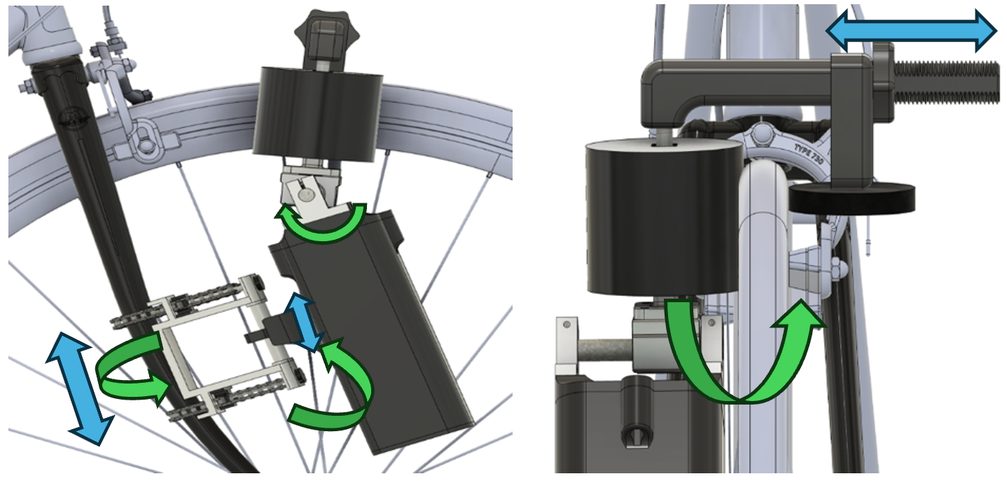

E-bike hub motor, CAD

7 degrees of adjustability for a universal fit

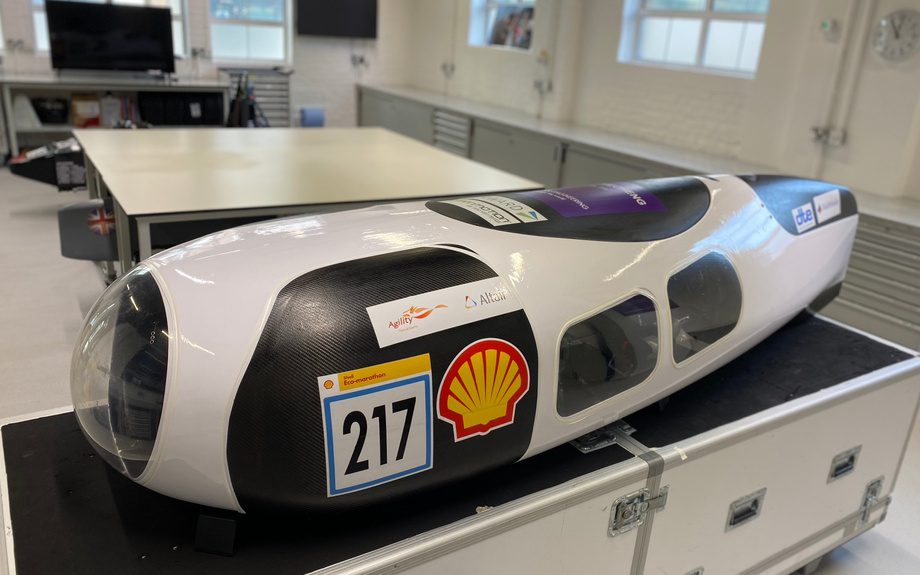

Ultra-efficient H2 vehicle R&D

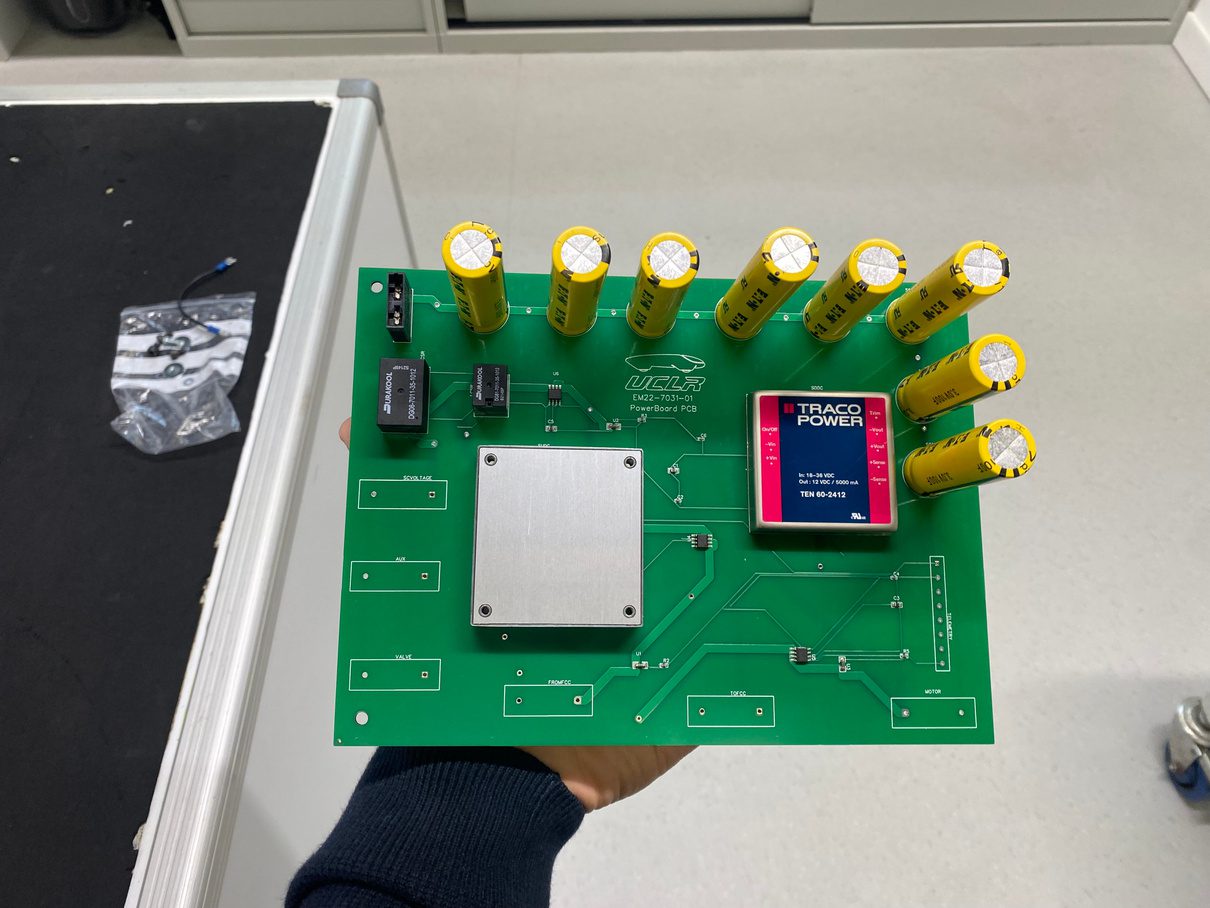

Powertrain PCB

Custom mainboard for the H2 fuel cell powertrain

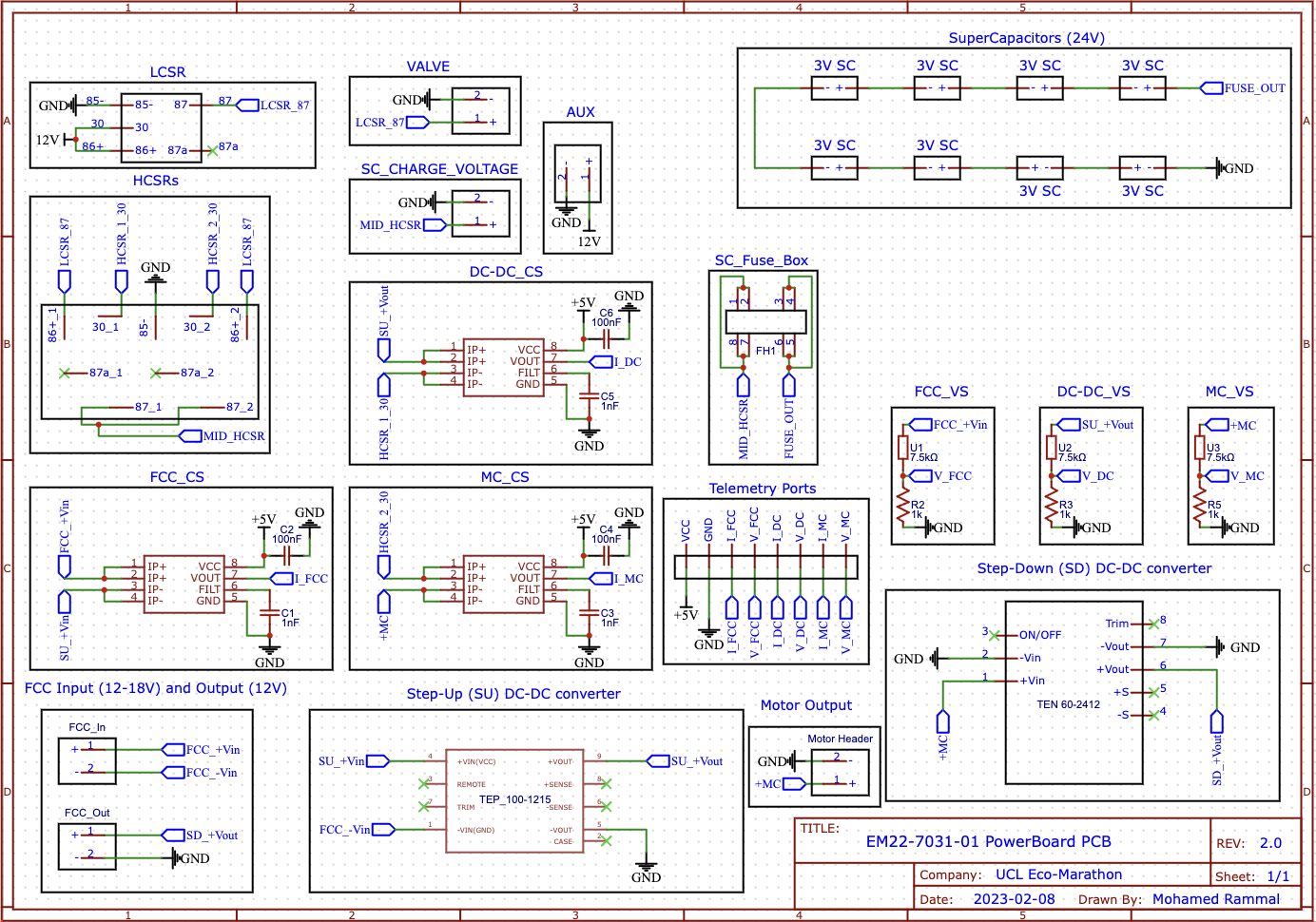

Powerboard PCB schematic

Hand-sketched layout turned into an EasyEDA schematic

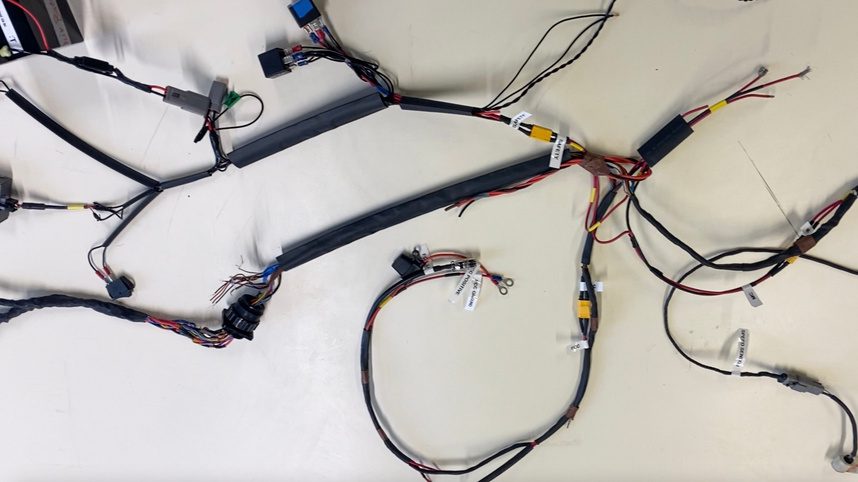

Automotive wiring harness

In-house harness for the H2 endurance vehicle

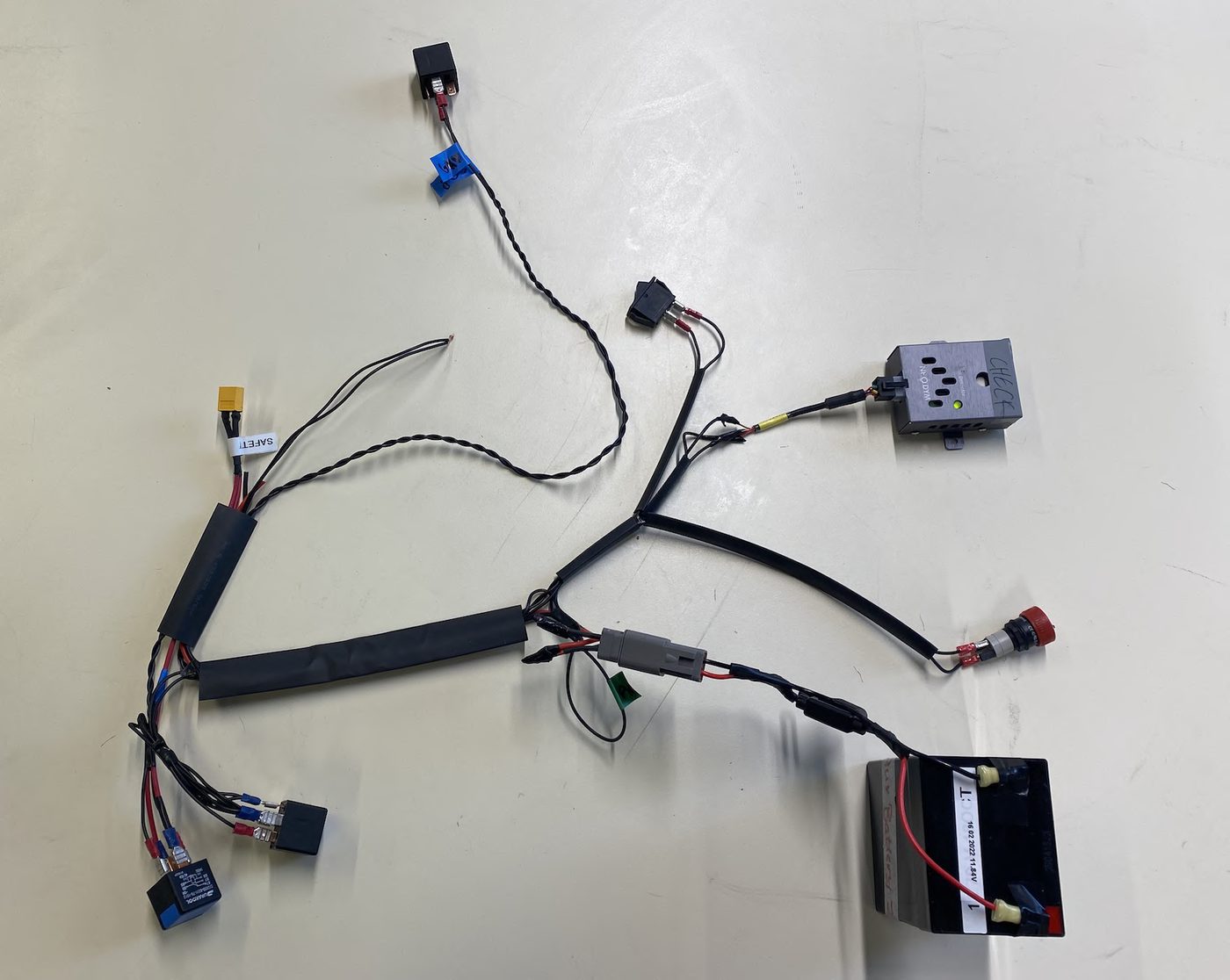

Full safety harness

Modular loom with emergency shutdown switches and hydrogen sensor

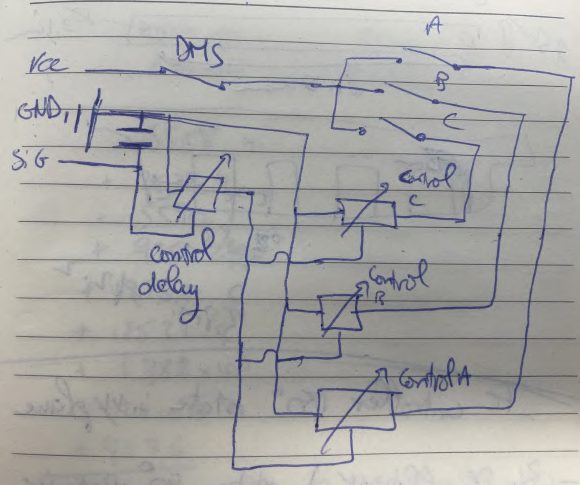

Throttle schematic sketch

Hand-drawn circuit for the 3-position throttle and dead-man switch

Throttle casing, CAD

Outer casing designed to match the driver's grip

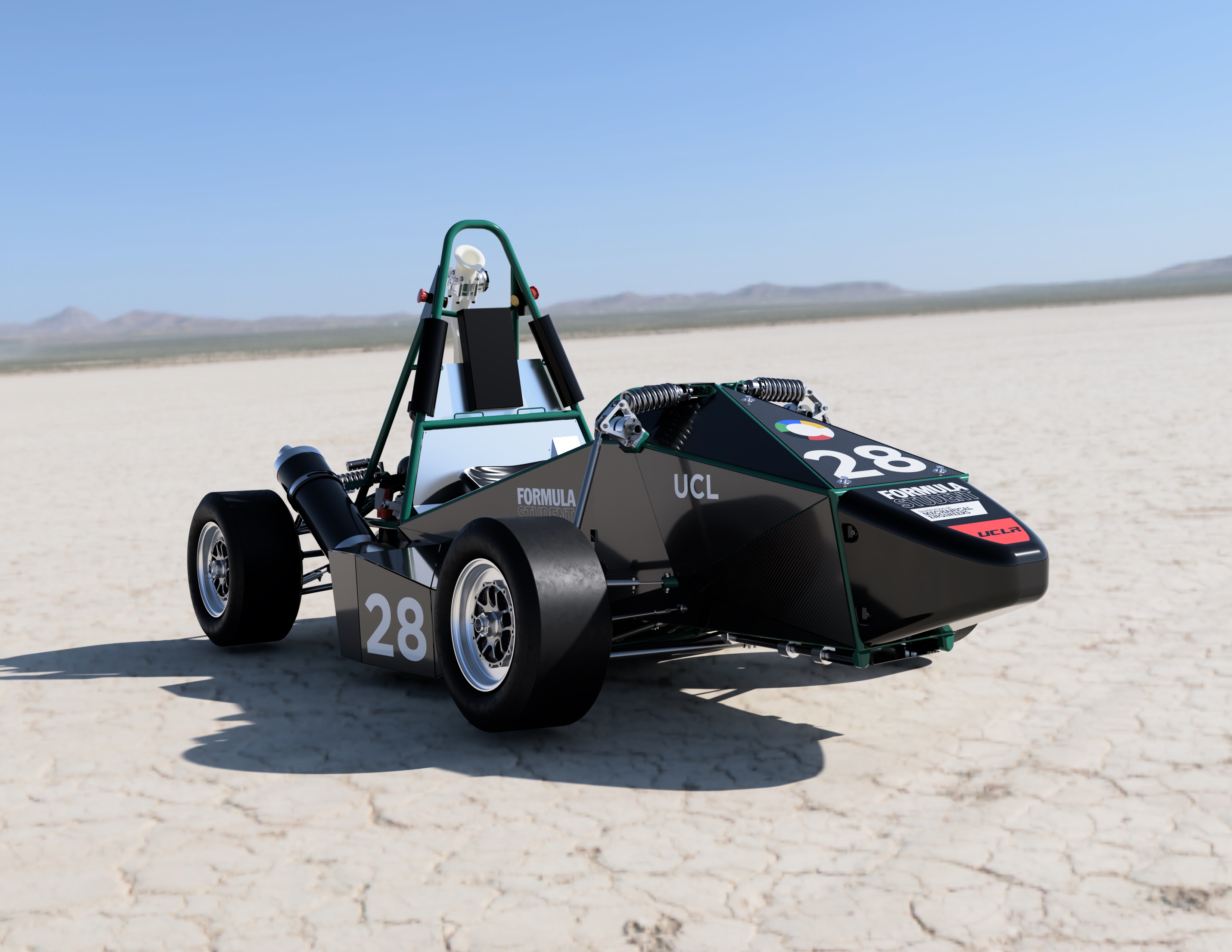

UCL Formula Student

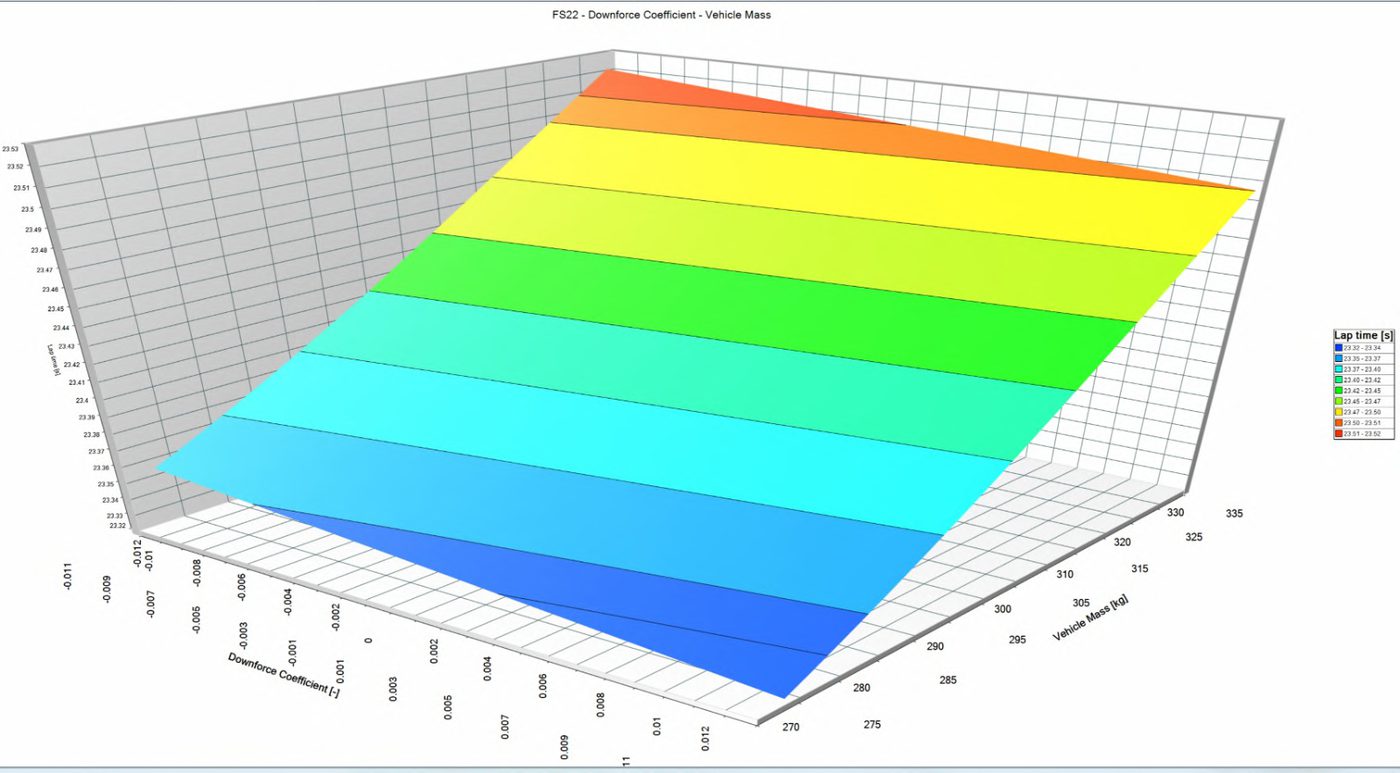

Lap time sensitivity

OptimumLap analysis of downforce vs. vehicle mass

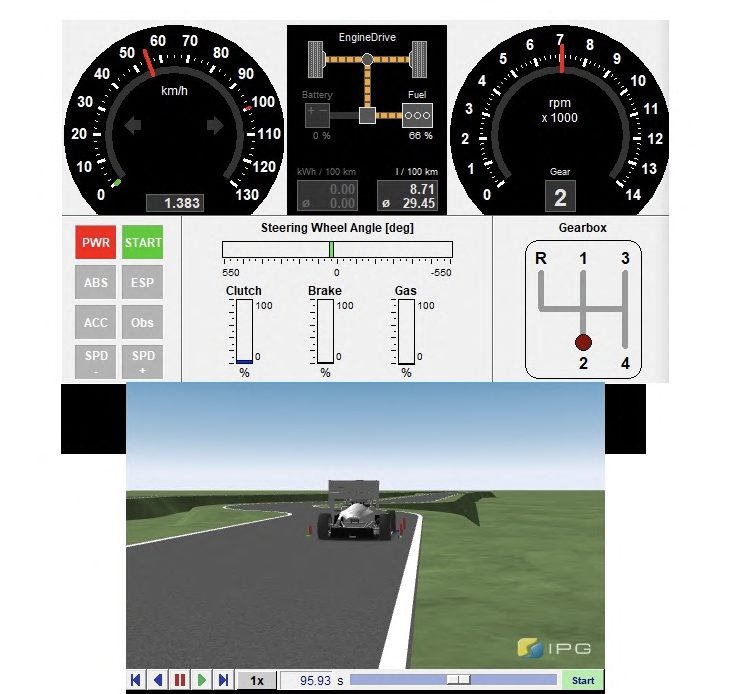

IPG Carmaker simulation

Modelling the car's performance on a virtual track

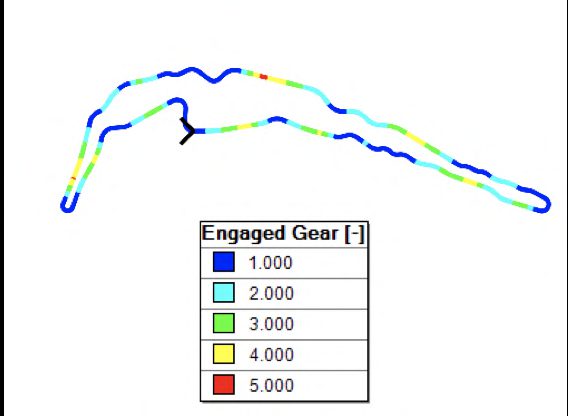

Gear engagement map

Visualising gear changes around the circuit layout

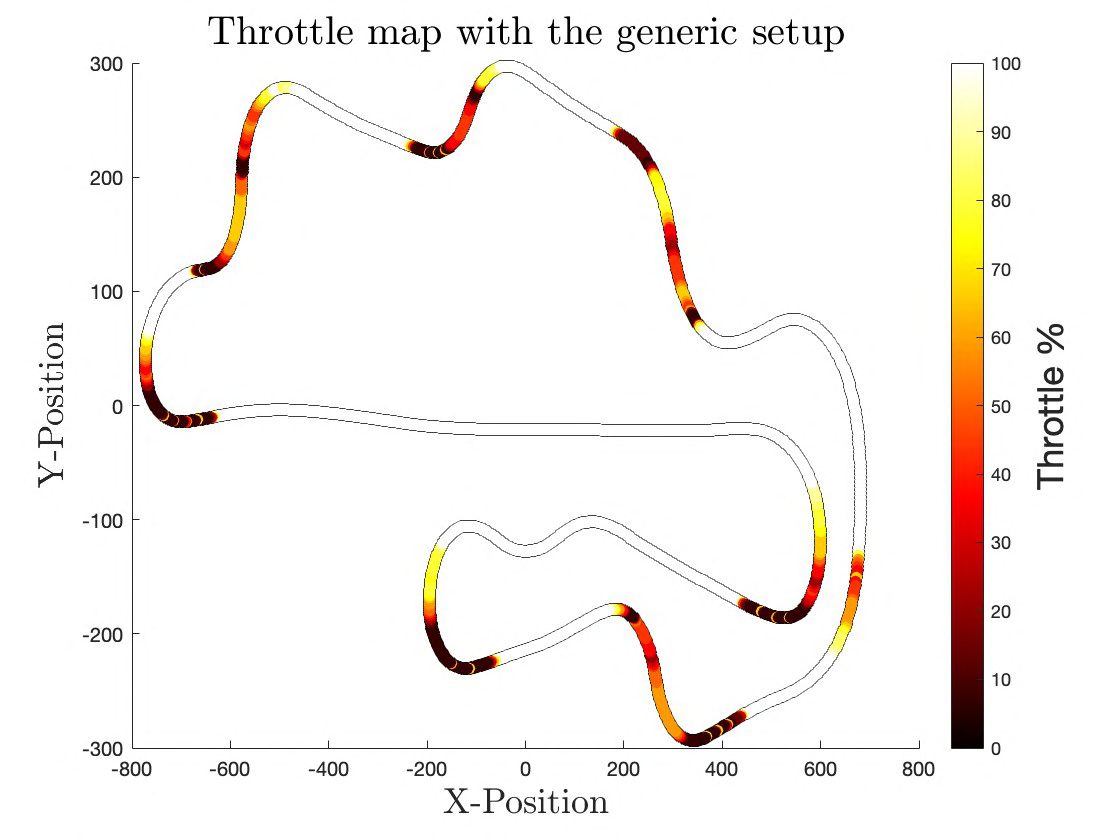

Throttle map, generic setup

Race engineering for the IMechE Sim Racing Series

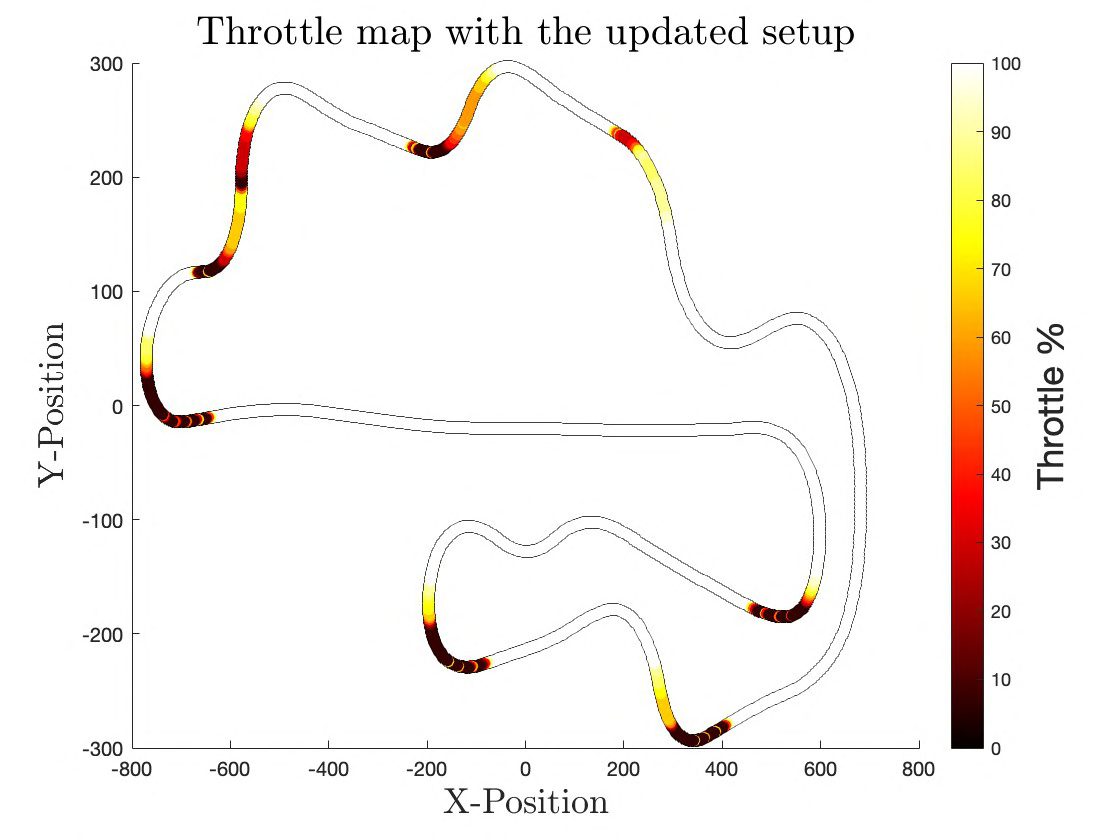

Throttle map, updated setup

Comparing driver throttle input after a setup change

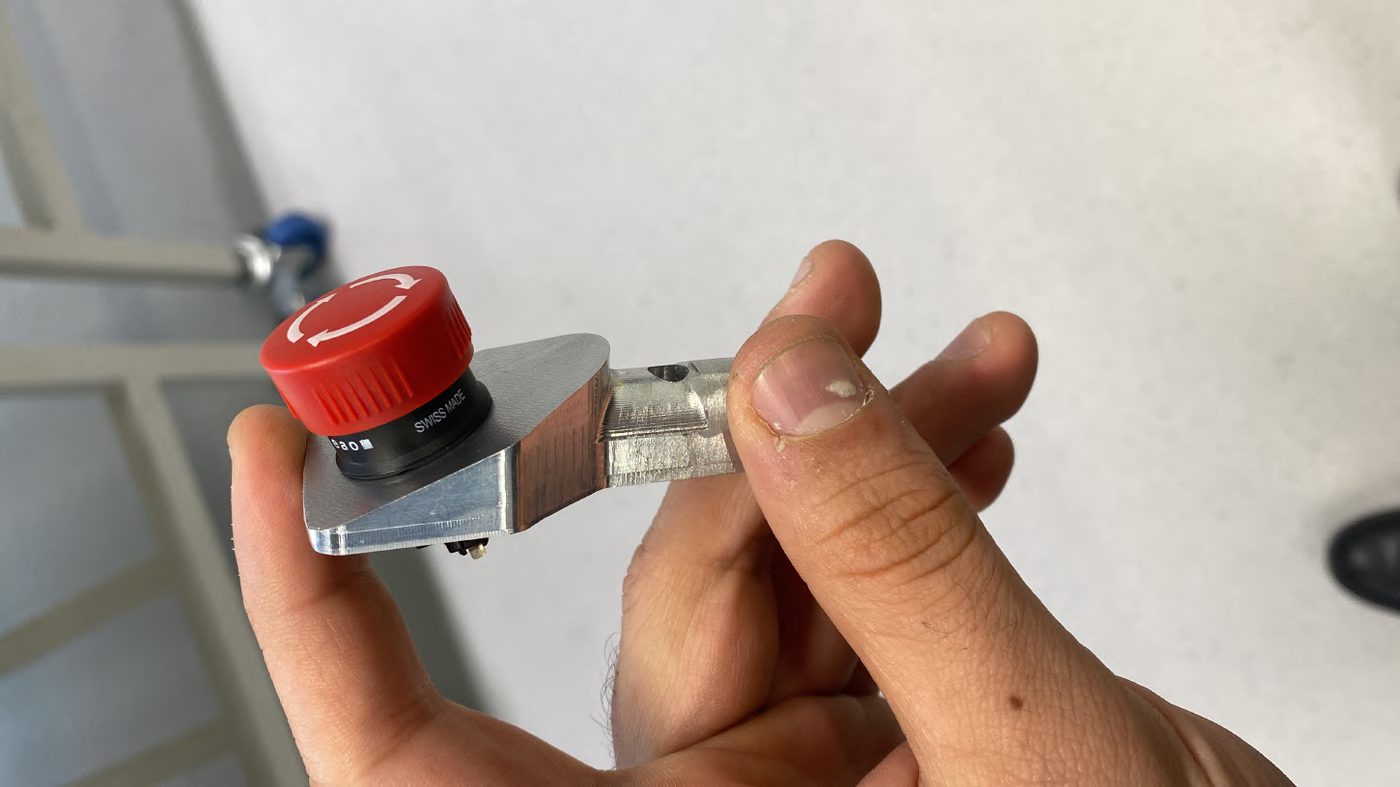

Brake Over-Travel Switch mount

Designed and manufactured the BOTS mount for the race car

Physio-therapeutic exercise assisting device

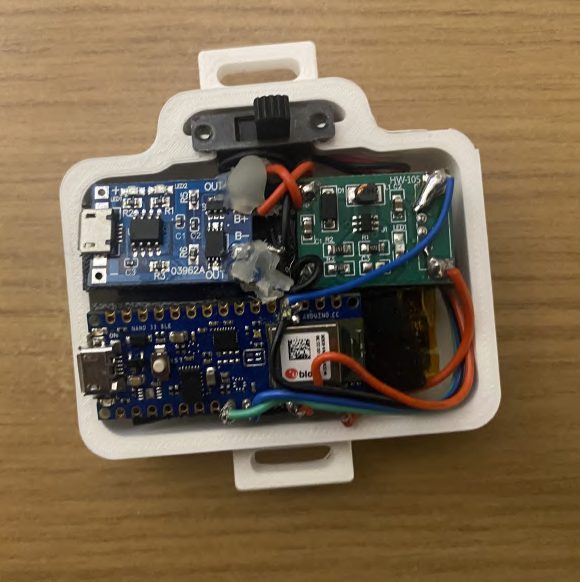

Final electronics package

Sensors and microcontroller packaged to fit around a wrist

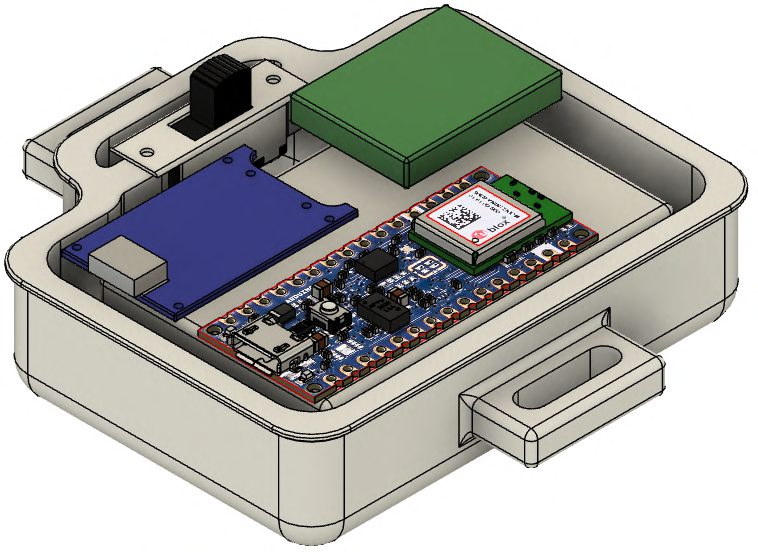

Casing, CAD model

Designed to package all components around a wrist

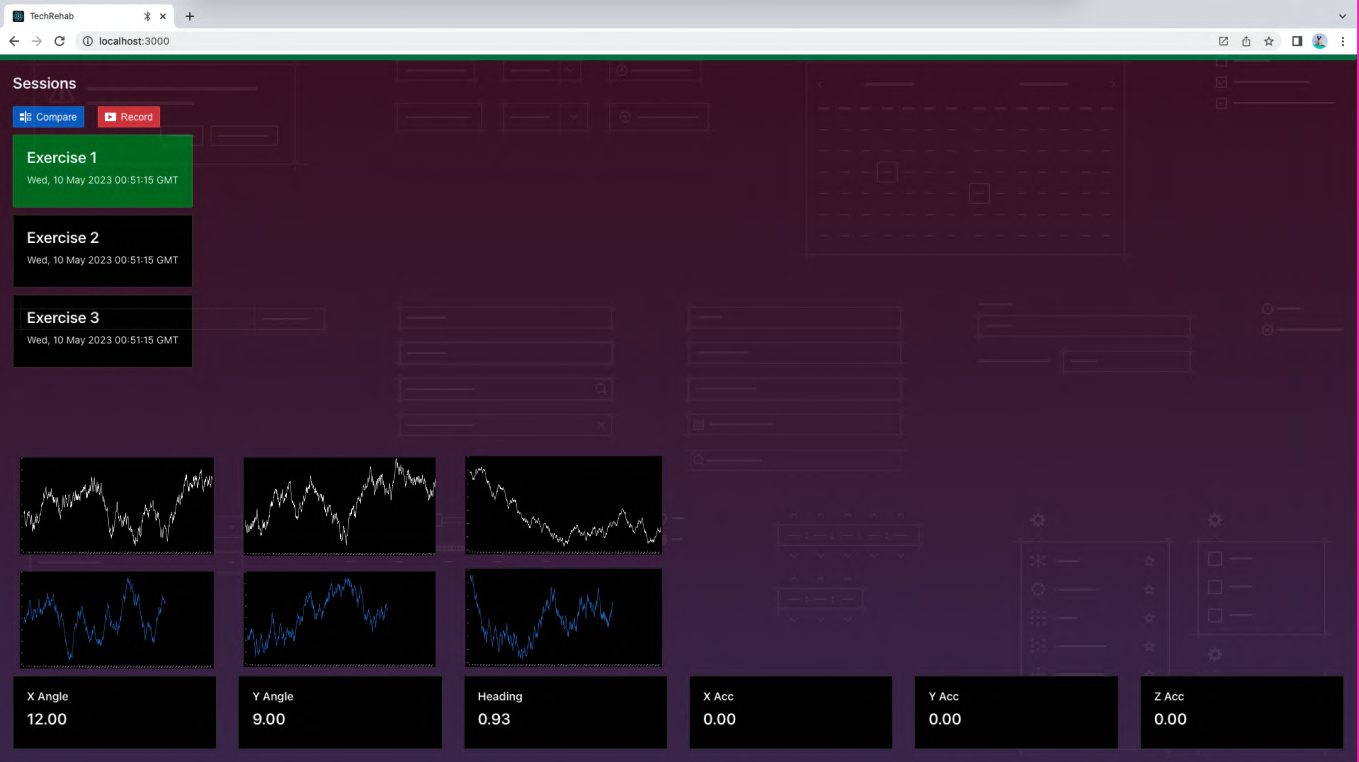

User interface

Tracks hand position against a physiotherapist-set path

IMechE Design Challenge — Year 1

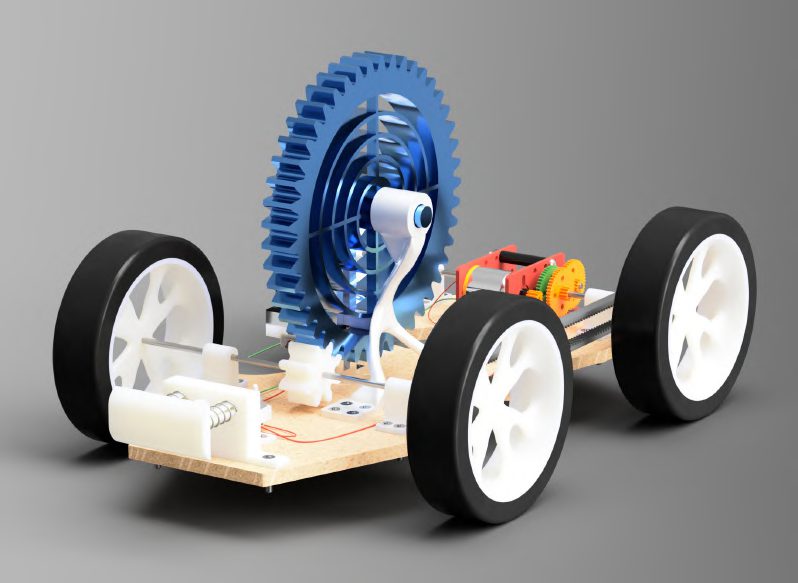

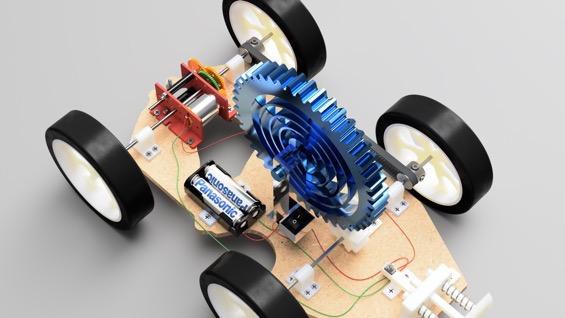

Repeatable vehicle assembly

All-mechanical vehicle that returns to its start point

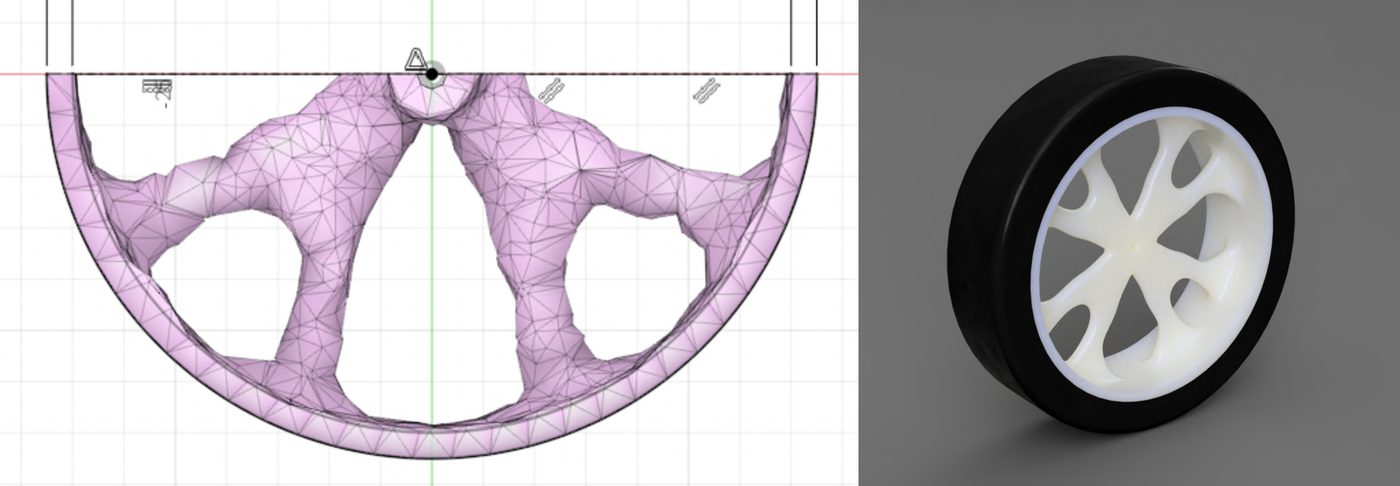

Wheel topology optimisation

Removing excess mass while respecting the force distribution

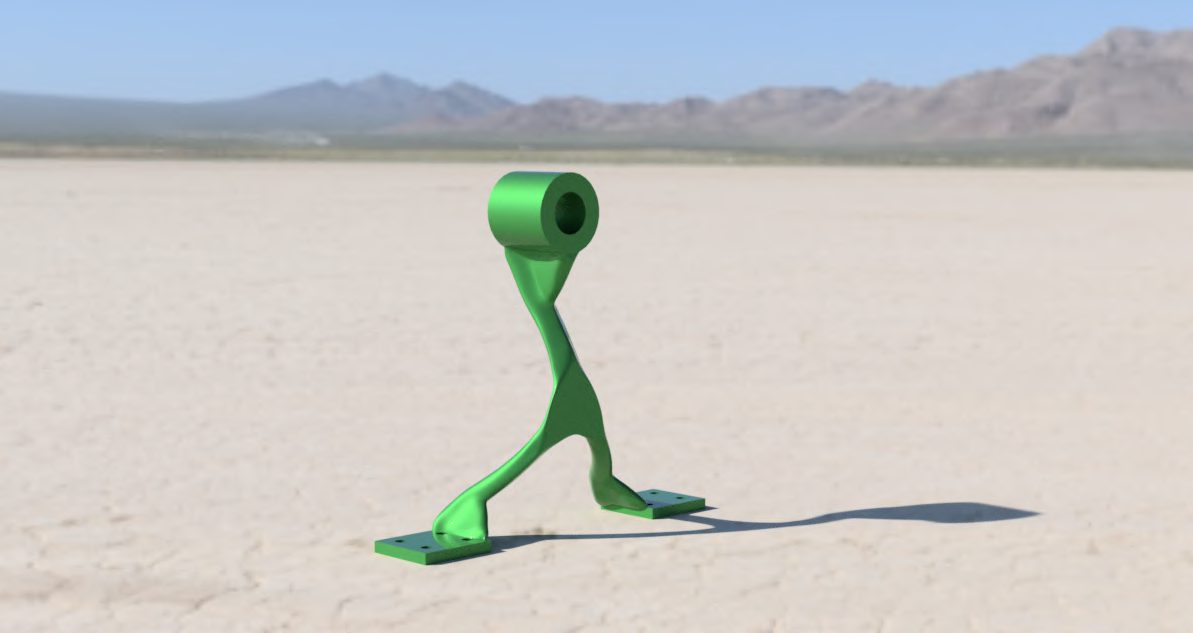

Generative-design support

Rigid support redesigned with a safety factor of 1.3

IMechE Design Challenge — Year 2

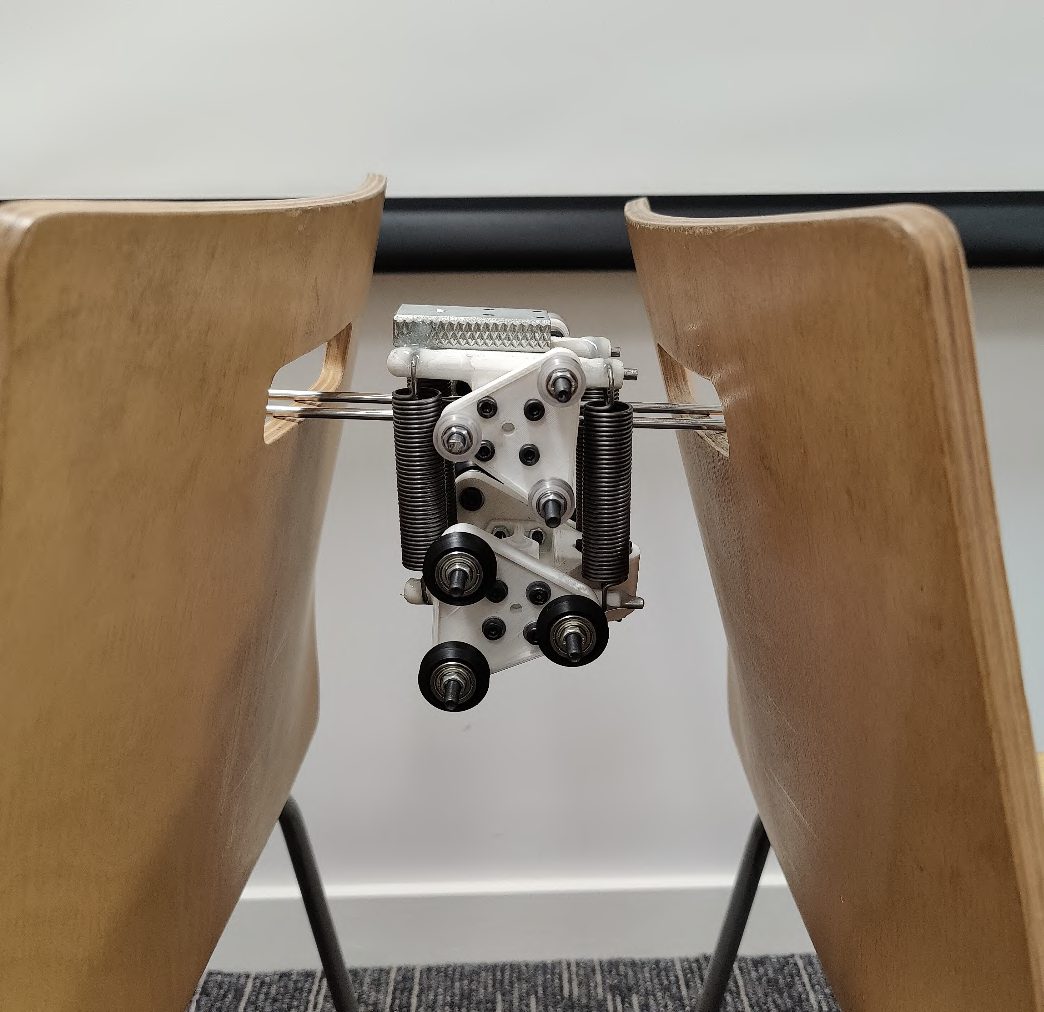

Spring-gantry assembly

Linear springs store elastic energy to launch a squash ball

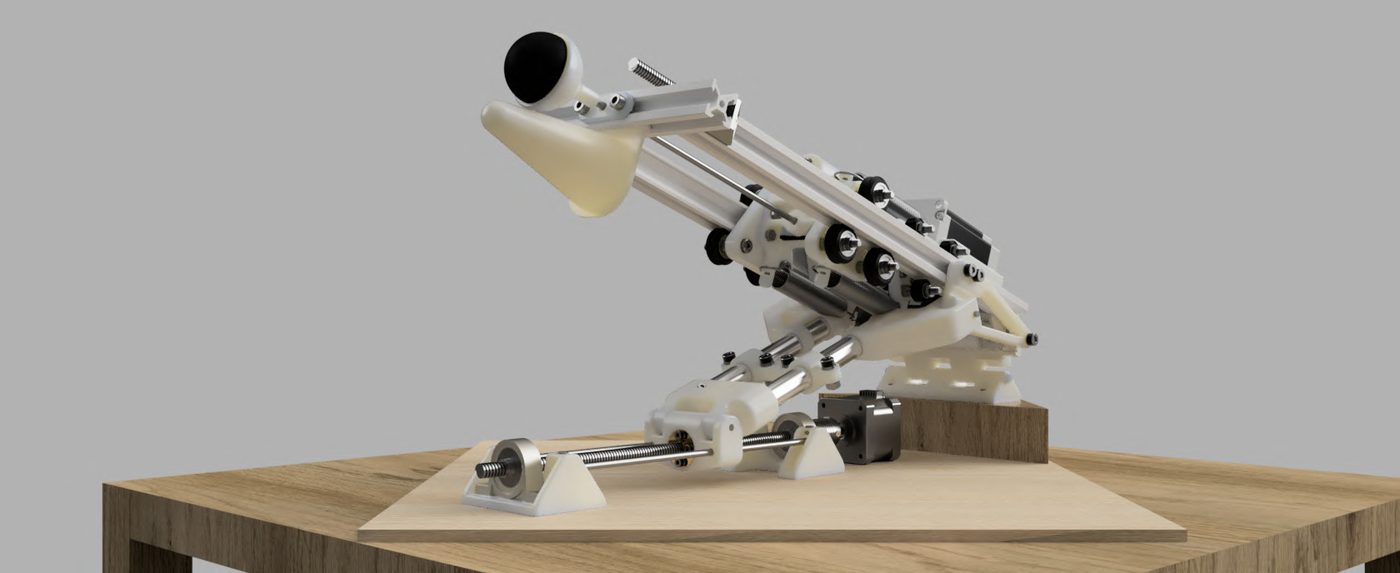

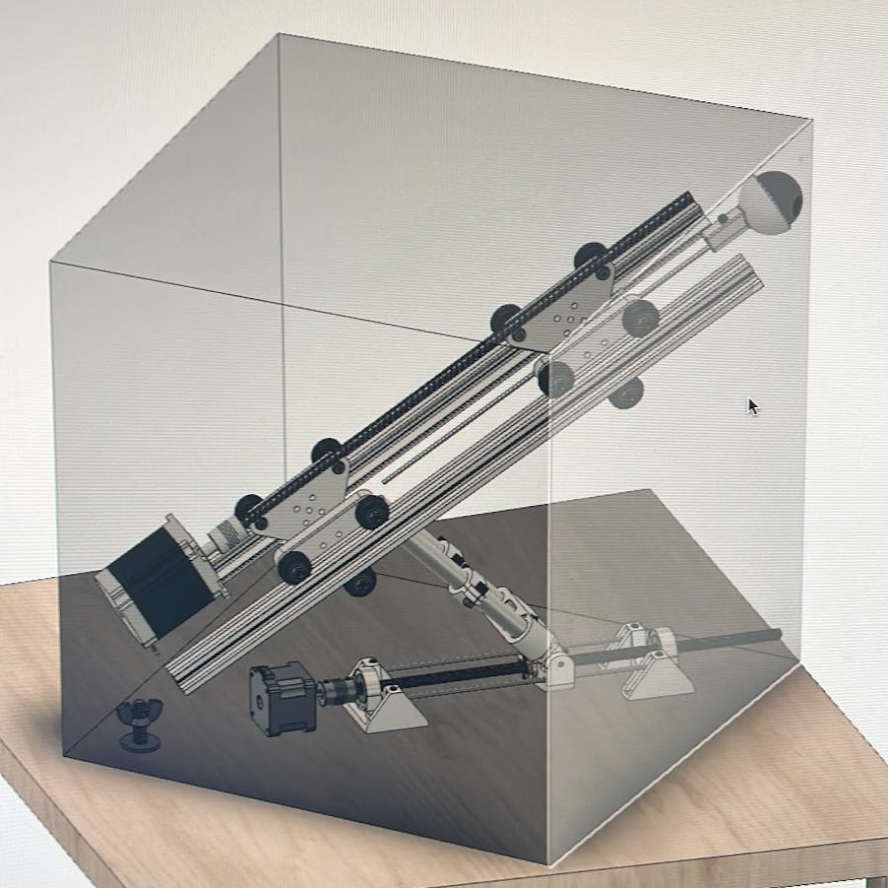

Full launcher assembly

Arduino-controlled launcher aimed using calculated launch angles

Design for Manufacture — Turbine impeller

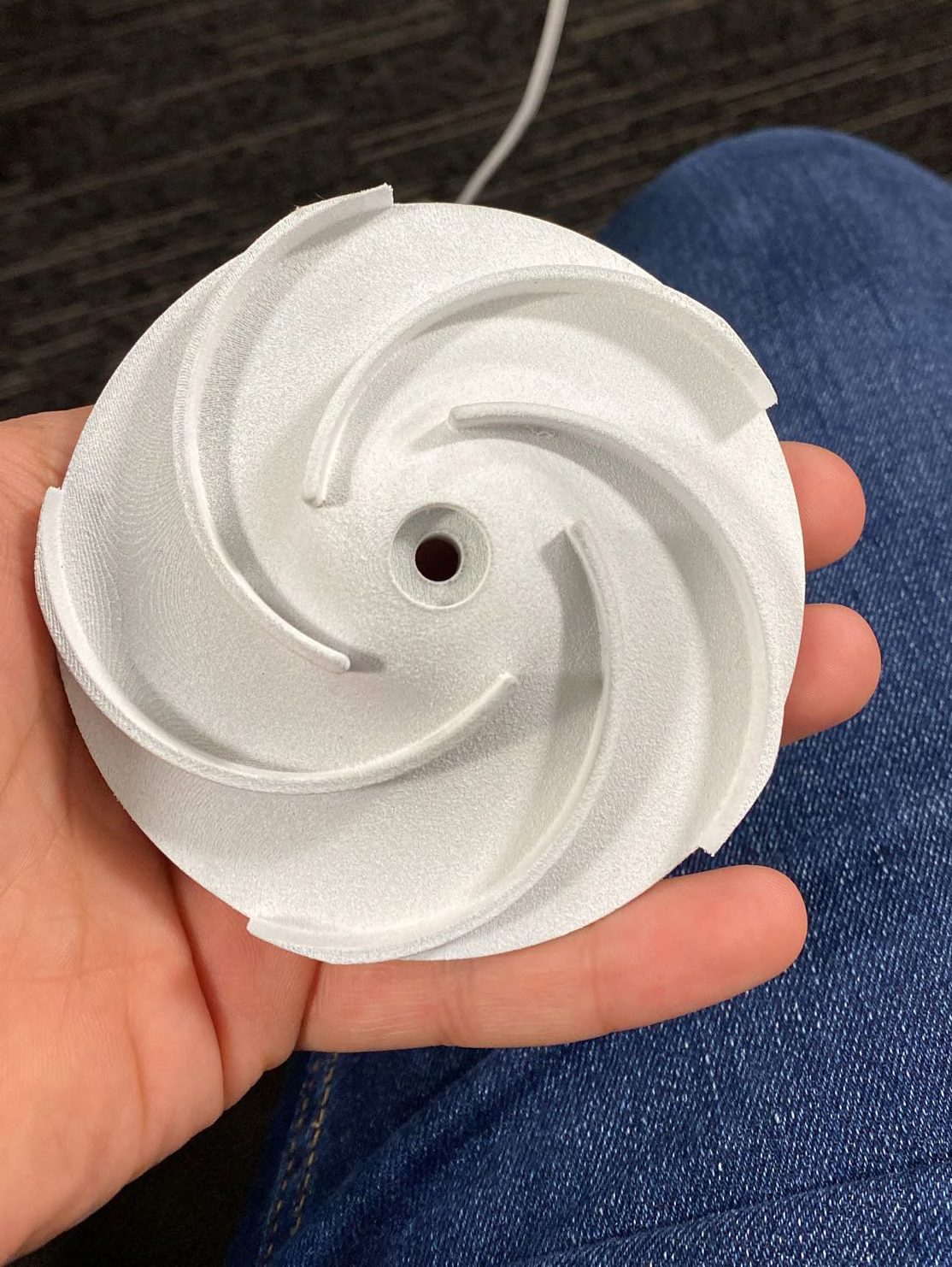

Impeller prototype

SLS-printed prototype reaching 44.6% peak efficiency

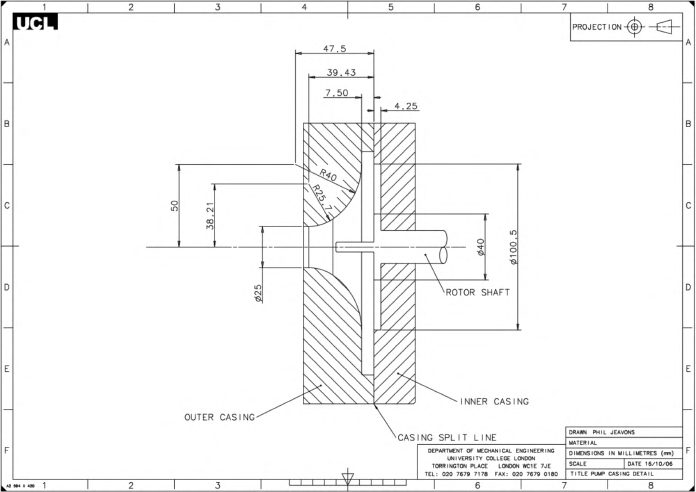

Housing technical drawing

Casing dimensions for the lower-scale test rig

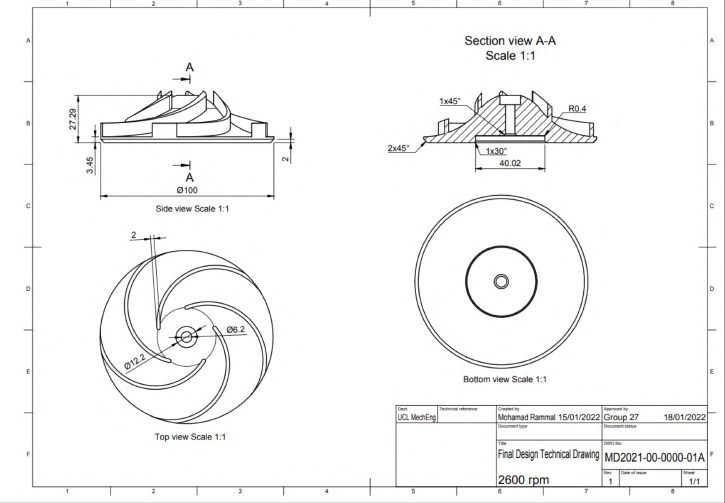

Impeller technical drawing

Full dimensioned drawing at 2600 rpm design speed

Design for Manufacture — Wall bracket

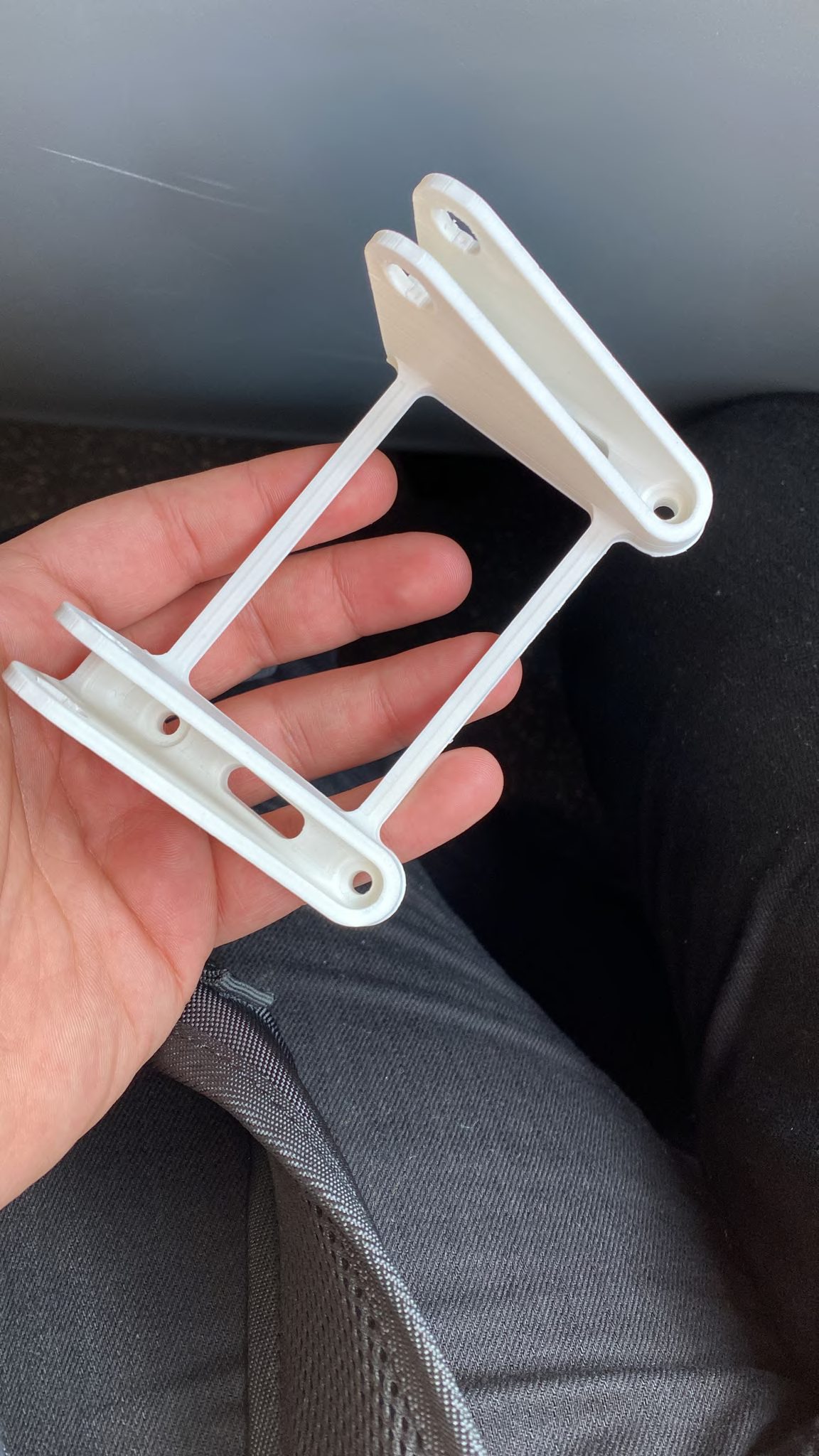

Bracket prototype

Generative design used to remove as much mass as possible

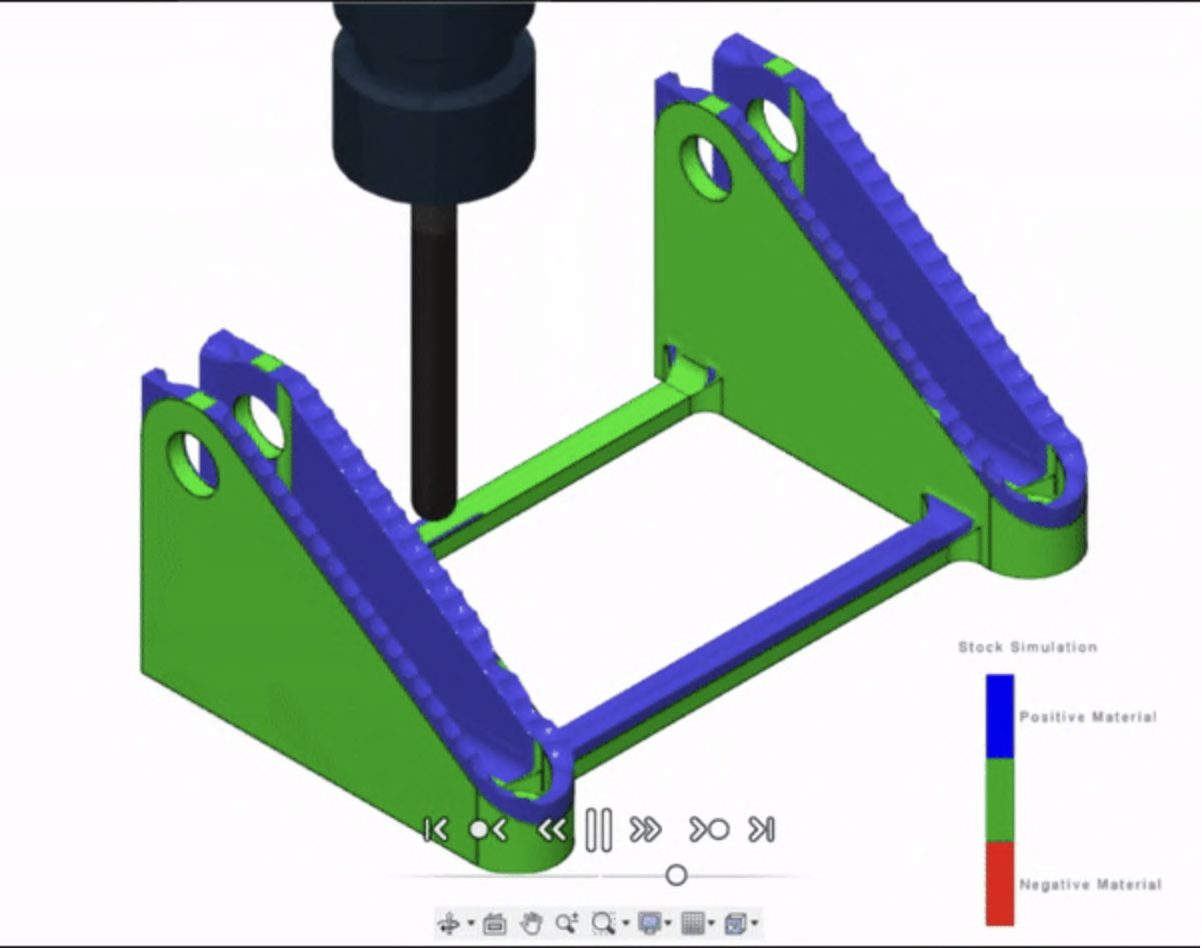

CAM toolpath preview

Programmed for efficient manufacture on a 3-axis router

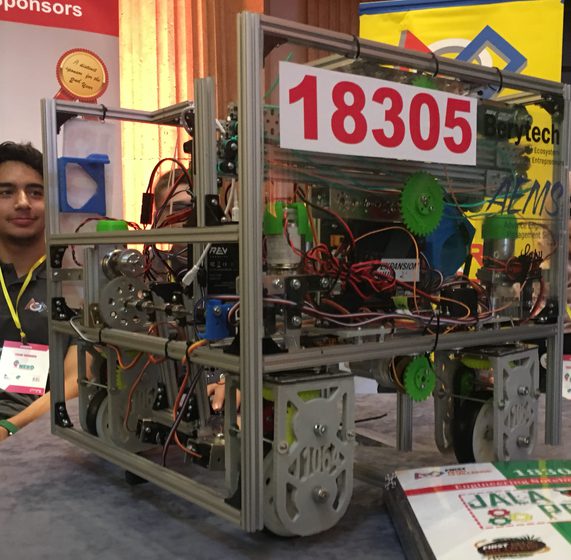

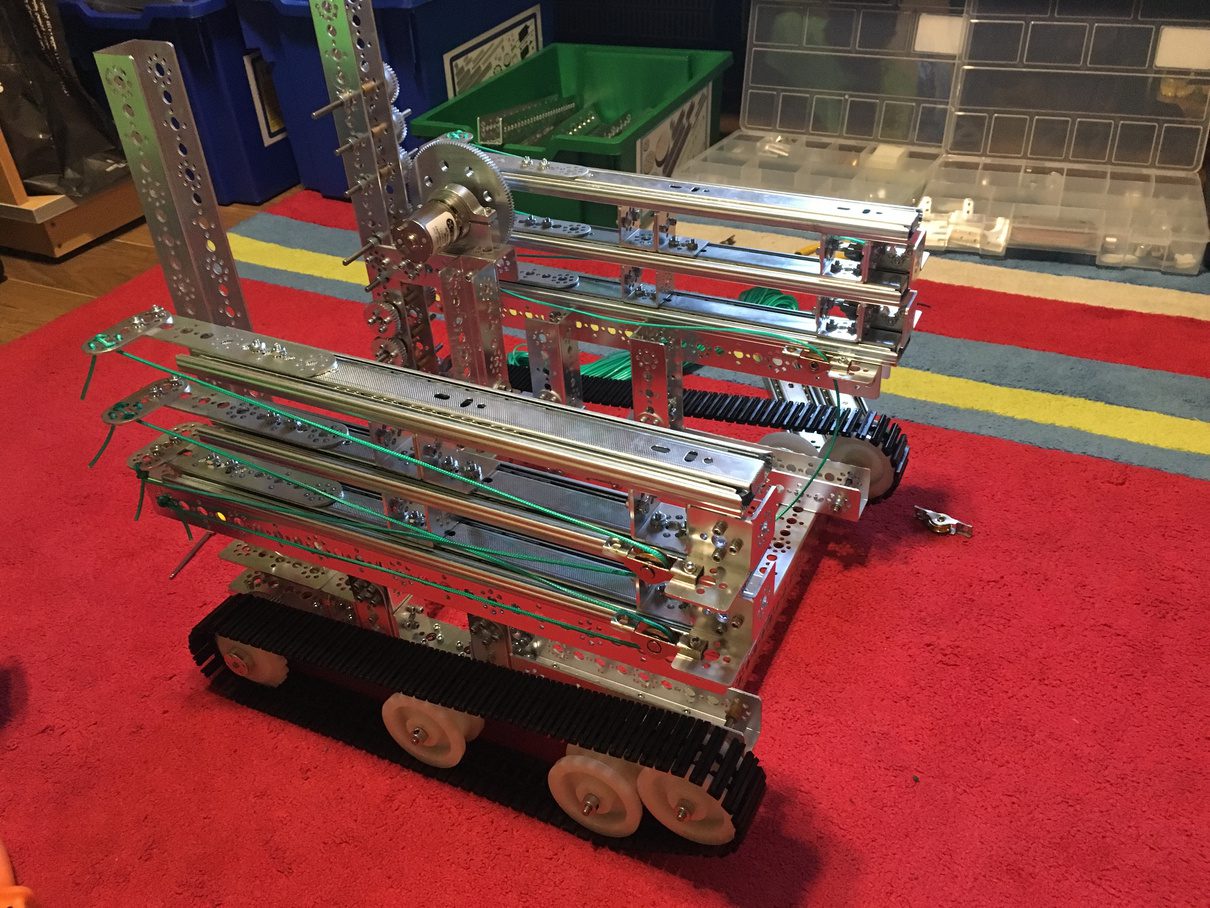

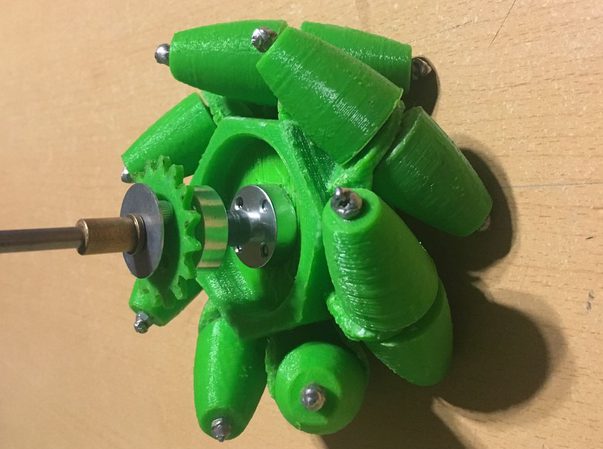

Mission-specific robots (FIRST Tech Challenge)

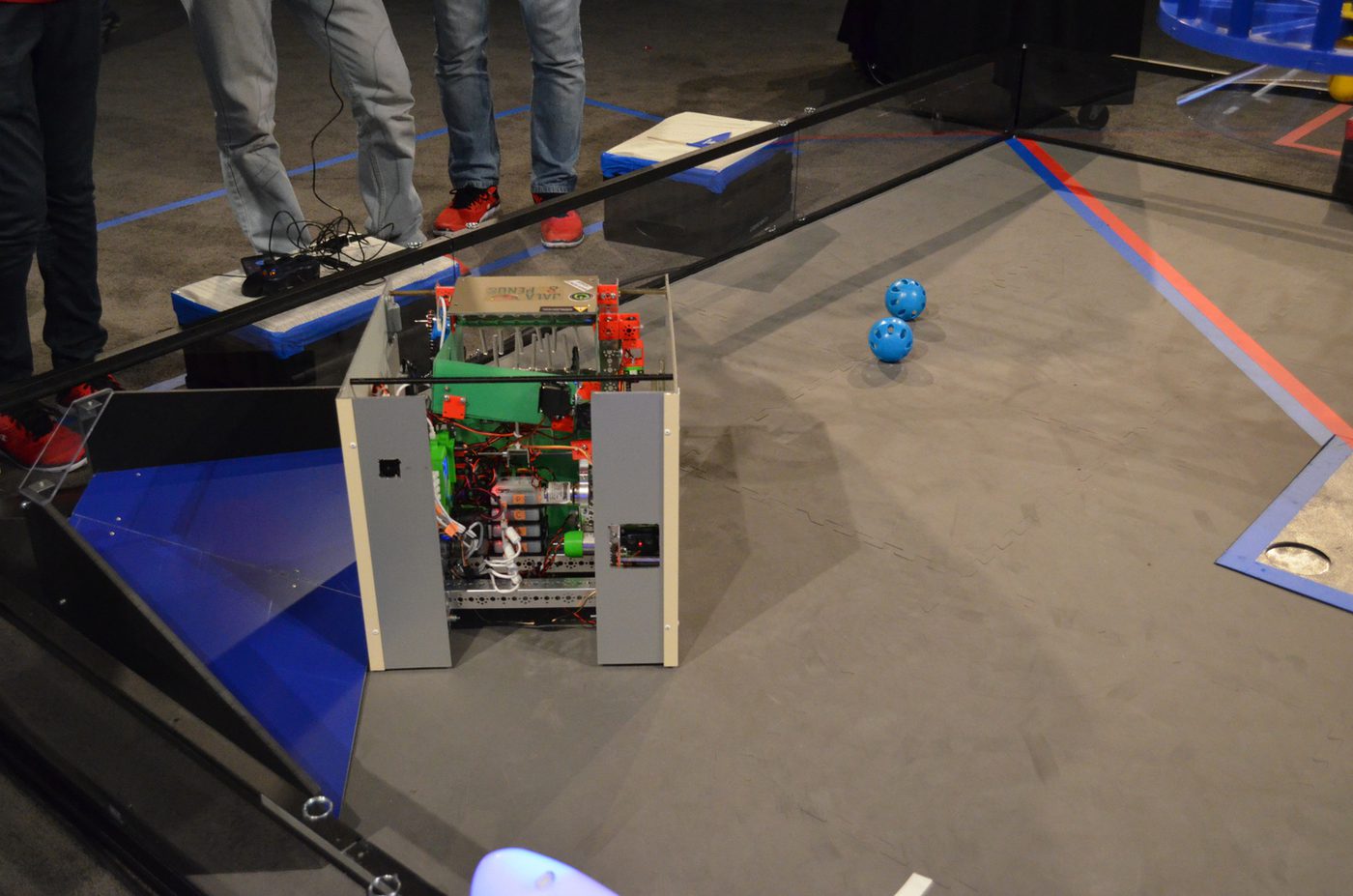

Ball collection robot

Robot collecting target balls at FTC World Championships 2017

Swerve drive mechanism

Robot showcasing swerve drive mechanism (similar to shopping trolleys)

Let's build something.

Mechanical Design Engineer based in London, UK — open to conversations about biotech, robotics, and automotive engineering.
